A block state is a piece of data attached to a singular block in the Minecraft world containing information on the block in the form of properties - some examples of properties vanilla stores in block states:

• Rotation: Mostly used for logs and other natural blocks.
• Activated: Heavily used in redstone devices, and blocks such as the furnace or smoker.
• Age: Used in crops, plants, saplings, kelp etc.

You can probably see why they are useful - they avoid the need to store NBT data in a block entity - reducing the world size, and preventing TPS issues!

Blockstate definitions are found in the assets/example-mod/blockstates folder.

Example: Pillar Block

Minecraft has some custom classes already that allow you quickly create certain types of blocks - this example goes through the creation of a block with the axis property by creating a "Condensed Oak Log" block.

The vanilla RotatedPillarBlock class allows the block to be placed in the X, Y or Z axis.

public static final Block CONDENSED_OAK_LOG = register(
		"condensed_oak_log",
		RotatedPillarBlock::new,
		BlockBehaviour.Properties.of().sound(SoundType.WOOD),
		true
);

Pillar blocks have two textures, top and side - they use the block/cube_column model.

As always, with all block textures, the texture files can be found in assets/example-mod/textures/block

Download Textures

Since the pillar block has two positions, horizontal and vertical, we'll need to make two separate model files:

• condensed_oak_log_horizontal.json which extends the block/cube_column_horizontal model.
• condensed_oak_log.json which extends the block/cube_column model.

An example of the condensed_oak_log_horizontal.json file:

{
  "parent": "minecraft:block/cube_column_horizontal",
  "textures": {
    "end": "example-mod:block/condensed_oak_log_top",
    "side": "example-mod:block/condensed_oak_log"
  }
}

INFO

Remember, blockstate files can be found in the assets/example-mod/blockstates folder, the name of the blockstate file should match the block ID used when registering your block in the ModBlocks class. For instance, if the block ID is condensed_oak_log, the file should be named condensed_oak_log.json.

For a more in-depth look at all the modifiers available in the blockstate files, check out the Minecraft Wiki - Models (Block States) page.

Next, we need to create a blockstate file, which is where the magic happens. Pillar blocks have three axes, so we'll use specific models for the following situations:

• axis=x - When the block is placed along the X axis, we will rotate the model to face the positive X direction.
• axis=y - When the block is placed along the Y axis, we will use the normal vertical model.
• axis=z - When the block is placed along the Z axis, we will rotate the model to face the positive X direction.

{
  "variants": {
    "axis=x": {
      "model": "example-mod:block/condensed_oak_log_horizontal",
      "x": 90,
      "y": 90
    },
    "axis=y": {
      "model": "example-mod:block/condensed_oak_log"
    },
    "axis=z": {
      "model": "example-mod:block/condensed_oak_log_horizontal",
      "x": 90
    }
  }
}

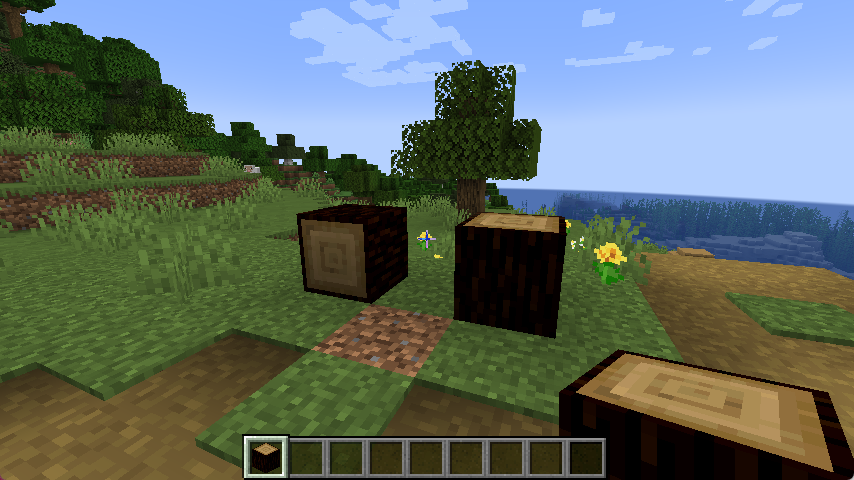

As always, you'll need to create a translation for your block, and an item model which parents either of the two models.

Custom Block States

Custom block states are great if your block has unique properties - sometimes you may find that your block can re-use vanilla properties.

This example will create a unique boolean property called activated - when a player right-clicks on the block, the block will go from activated=false to activated=true - changing its texture accordingly.

Creating The Property

Firstly, you'll need to create the property itself - since this is a boolean, we'll use the BooleanProperty.create method.

public class PrismarineLampBlock extends Block {
	public static final BooleanProperty ACTIVATED = BooleanProperty.create("activated");

}

Next, we have to append the property to the blockstate manager in the createBlockStateDefinition method. You'll need to override the method to access the builder:

@Override
protected void createBlockStateDefinition(StateDefinition.Builder<Block, BlockState> builder) {
	builder.add(ACTIVATED);
}

You'll also have to set a default state for the activated property in the constructor of your custom block.

public PrismarineLampBlock(Properties settings) {
	super(settings);

	// Set the default state of the block to be deactivated.
	registerDefaultState(defaultBlockState().setValue(ACTIVATED, false));
}

Using The Property

This example flips the boolean activated property when the player interacts with the block. We can override the useWithoutItem method for this:

@Override
protected InteractionResult useWithoutItem(BlockState state, Level world, BlockPos pos, Player player, BlockHitResult hit) {
	if (!player.getAbilities().mayBuild) {
		// Skip if the player isn't allowed to modify the world.
		return InteractionResult.PASS;
	} else {
		// Get the current value of the "activated" property
		boolean activated = state.getValue(ACTIVATED);

		// Flip the value of activated and save the new blockstate.
		world.setBlockAndUpdate(pos, state.setValue(ACTIVATED, !activated));

		// Play a click sound to emphasise the interaction.
		world.playSound(player, pos, SoundEvents.COMPARATOR_CLICK, SoundSource.BLOCKS, 1.0F, 1.0F);

		return InteractionResult.SUCCESS;
	}
}

Visualizing The Property

Before creating the blockstate file, you will need to provide textures for both the activated and deactivated states of the block, as well as the block model.

Download Textures

Use your knowledge of block models to create two models for the block: one for the activated state and one for the deactivated state. Once you've done that, you can begin creating the blockstate file.

Since you created a new property, you will need to update the blockstate file for the block to account for that property.

If you have multiple properties on a block, you'll need to account for all possible combinations. For example, activated and axis would lead to 6 combinations (two possible values for activated and three possible values for axis).

Since this block only has two possible variants, as it only has one property (activated), the blockstate JSON will look something like this:

{
  "variants": {
    "activated=false": {
      "model": "example-mod:block/prismarine_lamp"
    },
    "activated=true": {
      "model": "example-mod:block/prismarine_lamp_on"
    }
  }
}

TIP

Don't forget to add an Client Item for the block so that it will show in the inventory!

Since the example block is a lamp, we also need to make it emit light when the activated property is true. This can be done through the block settings passed to the constructor when registering the block.

You can use the lightLevel method to set the light level emitted by the block, we can create a static method in the PrismarineLampBlock class to return the light level based on the activated property, and pass it as a method reference to the lightLevel method:

public static int getLuminance(BlockState currentBlockState) {
	// Get the value of the "activated" property.
	boolean activated = currentBlockState.getValue(PrismarineLampBlock.ACTIVATED);

	// Return a light level if activated = true
	return activated ? 15 : 0;
}

public static final Block PRISMARINE_LAMP = register(
		"prismarine_lamp",
		PrismarineLampBlock::new,
		BlockBehaviour.Properties.of()
				.sound(SoundType.LANTERN)
				.lightLevel(PrismarineLampBlock::getLuminance),
		true
);

Once you've completed everything, the final result should look something like the following:
